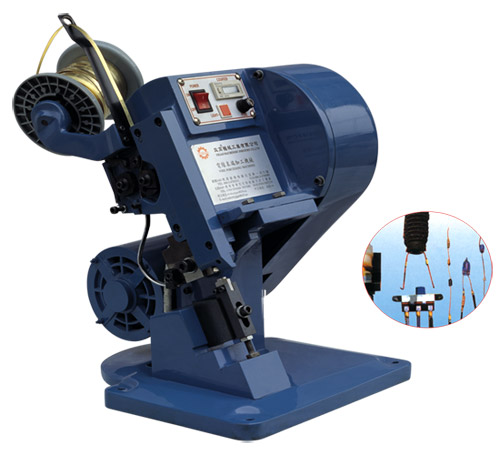

YG-45半自動接線端子機(銅帶機)
{$產品視頻$}
特點說明
- 本機專門針對需要鉚合加工的線材所設計， 速度快、品質好。壓著方式連接線材，取代傳統的焊錫方式， 沒有冷焊、空焊及空氣污染的缺點。為通過各種安全規格
測試(UL,JIS)最簡易有效的方式。
- 采用特殊連續式銅帶端子材料經切斷、成型、壓著一次完成，迅速且無廢料產生，節省成本。
- 銅帶端子經特殊紋路處理，鉚合后耐拉力特強，品質穩定。配備直、彎模座供不同產品連接用。人性化設計，操作簡易，不需訓練可隨時上 機操作。
Explanation of features
- 1. It is specially designed for wire material requiring riveting processing, with the
advantages of high speed and sound quality. The pressing mode substitutes the
traditional wetting mode, without the disadvantages of cold welding, air welding
and air pollution. It is the most convenient and efficient way to pass testing of
various safety specifications (UL, JIS).
- It adopts special continuous copper belt terminal material cutting, forming and
pressing together, with the advantages of no waste and cost saving.
- The copper belt terminal is treated with special grain. The tension resistance is
quite strong after riveting, and the quality is stable. It is equipped with straight
and bent mold seats for different products. It boasts the advantages of people-
oriented design, simple operation, and operation without need for training.
技術參數Technical parameters
| 機 型 |
Mode |
YG-45 |
| 電 源 |
Power |
AC 110V/220V |
| 馬 力 |
Horsepower |
1/4HP |
| 能 力 |
Capacity |
2 Ton |
| 銅帶端子尺寸 |
Copper belt terminal size |
2mm/4mm/6mm/8mm |
| 外觀尺寸 |
External dimensions |
370x400x500mm |
| 重 量 |
Weight |
50kg |
|
