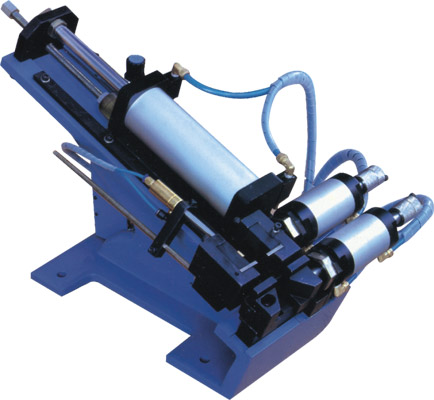

YG-305/310/316氣電式電線剝皮機
特點說明 斜背式設計，合乎人體工學。雙動式氣缸，無彈簧斷裂之慮。精致式刀模，大小型機種，刀模皆通用。 獨特式滑座，往復行程平穩，切剝精準。氣電式控制，輕巧敏捷，作業 輕松。 可調式結構，視線材粗細而作調整。AC/DC電源線、電腦線、電子線、多心線、特殊電線。
Explanation of features The hatchback design conforms to ergonomics. The double-action cylinder can get rid of the fault of spring break. The exquisite knife mold is applicable
to large- and small-sized machines. The unique sliding seat can make the reciprocating stroke stable and cutting & stripping precise. The gas electric type control can make the operation simple, rapid and convenient. The structure can be adjusted according to the thickness of wire material, and is applicable to AC/DC power cord, computer wire, electronic wire, multi-core wire and special wire.
技術參數Technical parameters | 型號 | YG-305 | YG-310 | YG-316 | | 行程 | 50mm | 100mm | 160mm | | 剝皮長度 | 50mm | 100mm | 160mm | | 剝線能力 | Max.5mm | Max.15mm | Max.20mm | | 空氣壓力 | 3--7kgf(需使用清潔干燥空氣) | 3--7kgf(需使用清潔干燥空氣) | 3--7kgf(需使用清潔干燥空氣) | | 電壓 | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz | AC 110V/220V 50Hz/60Hz | | 能力 | 31--73kg | 49--115kg | 49--115kg | | 氣缸尺寸 | 主φ45x125--1 副φ37x90--2 | 主φ55x180--1 副φ45x95--2 | 主φ75x230--1 副φ58x120--2 | | 外觀尺寸 | 400x300x270mm | 480x330x280mm | 660x390x340mm | | 重量 | 20kg | 25kg | 35kg |
|
