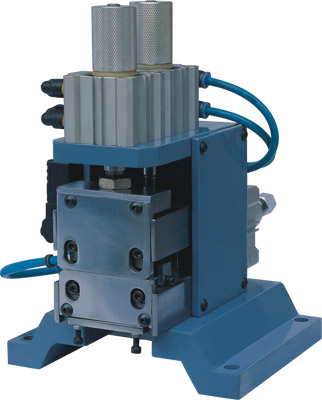

YG-3F直立式剝皮機
{$產品視頻$}
特點說明
- 改良傳統電腦心線剝皮用腳踏手拉方式，改進成前夾后退方式，節省體力之最佳機型。
- 操作時采平面左右移動方式，縮短線、夾座距離，使電腦線或特殊短線均可本機使用。
- 特殊結構，速度快，電腦線及一般電線，半剝、全剝，調整容易為電線末端加工最新機種。
Explanation of features
-
1. It changes the foot-stepping and hand-drawing mode of traditional computer
stripping to front-clipping and rear-reversing mode. It is the best type for
labor-saving.
- It adopts horizontal left-and-right movements to shorten the distance between
wire and clip seat. It is applicable to computer wire and special short wire.
- It adopts a special structure and boasts the advantages of high speed and
convenient adjustment. It is applicable for half-stripping and whole-stripping
of computer wire and common wire. Thus, it is the latest type for processing
of wire end.
技術參數Technical parameters
| 型號 |
Model |
YG-3F |
| 電源 |
Power |
110v/220V 50/60HZ |
| 空氣壓力 |
Air pressure |
5Kgs |
| 剝皮長度 |
Stripping length |
Max.15mm |
| 氣缸尺寸 |
Cylinder size |
主64x64x60--1 副52x52x50--2 |
| 外觀尺寸 |
External dimensions |
260mmX150mmX270mm |
| 重量 |
Weight |
9Kg |
|
